Fig. 5
Download original image

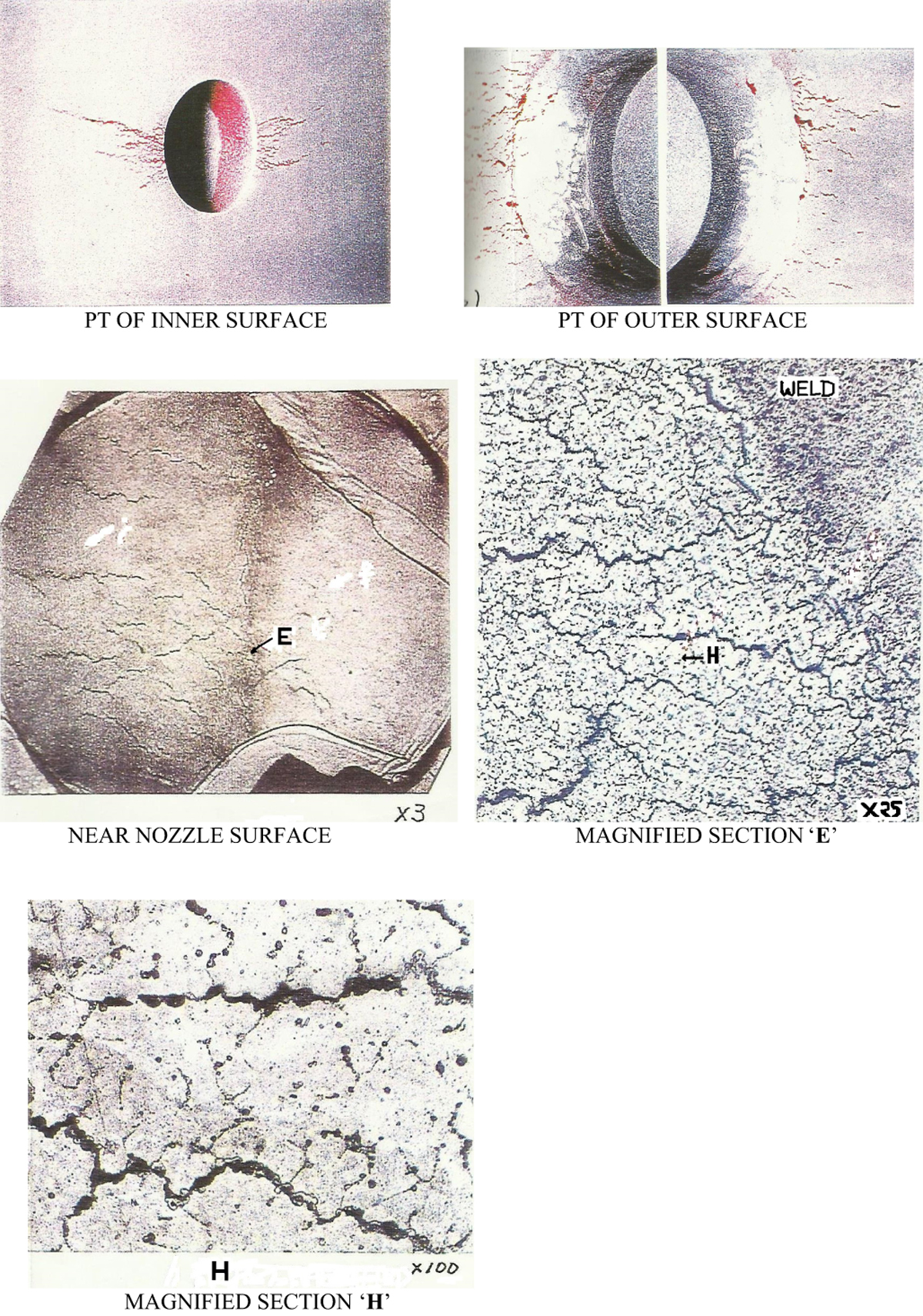

Results of PT check and macro/micro-structural analysis for sample from RH1 hot-collector, indicating cracks and creep fissures/voids around the nozzle (to which, short-piece with 7.4% bulging was connected): (a) PT of inner surface, (b) PT of outer surface, (c) near nozzle surface, (d) magnified section “E”, and (e) magnified section “H”.
