Fig. 8
Download original image

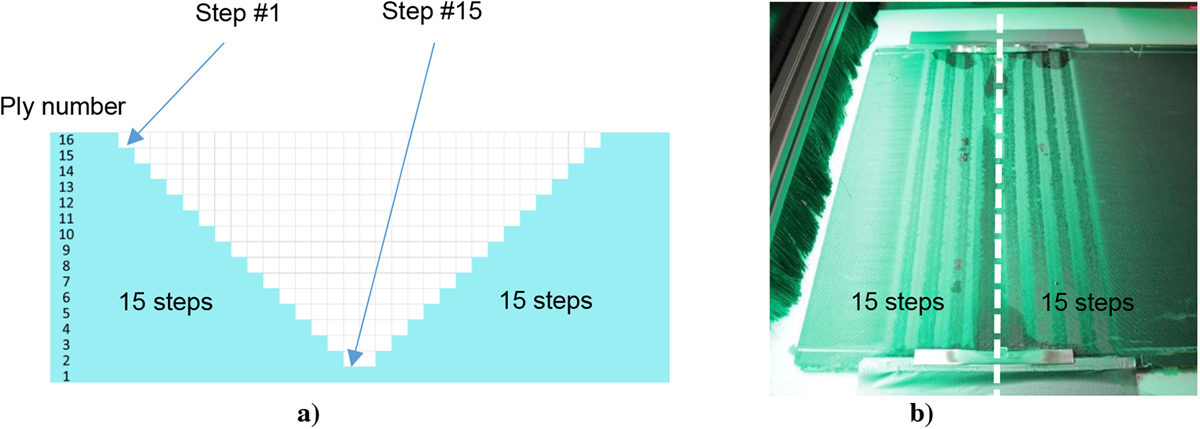

Machining of the 15 steps (for 16 plies in total) with (a) scheme of milled profile (not to scale) and (b) view of the finished milled stepped-lap for the overlap ratio of 20.
