Fig. 14


Download original image

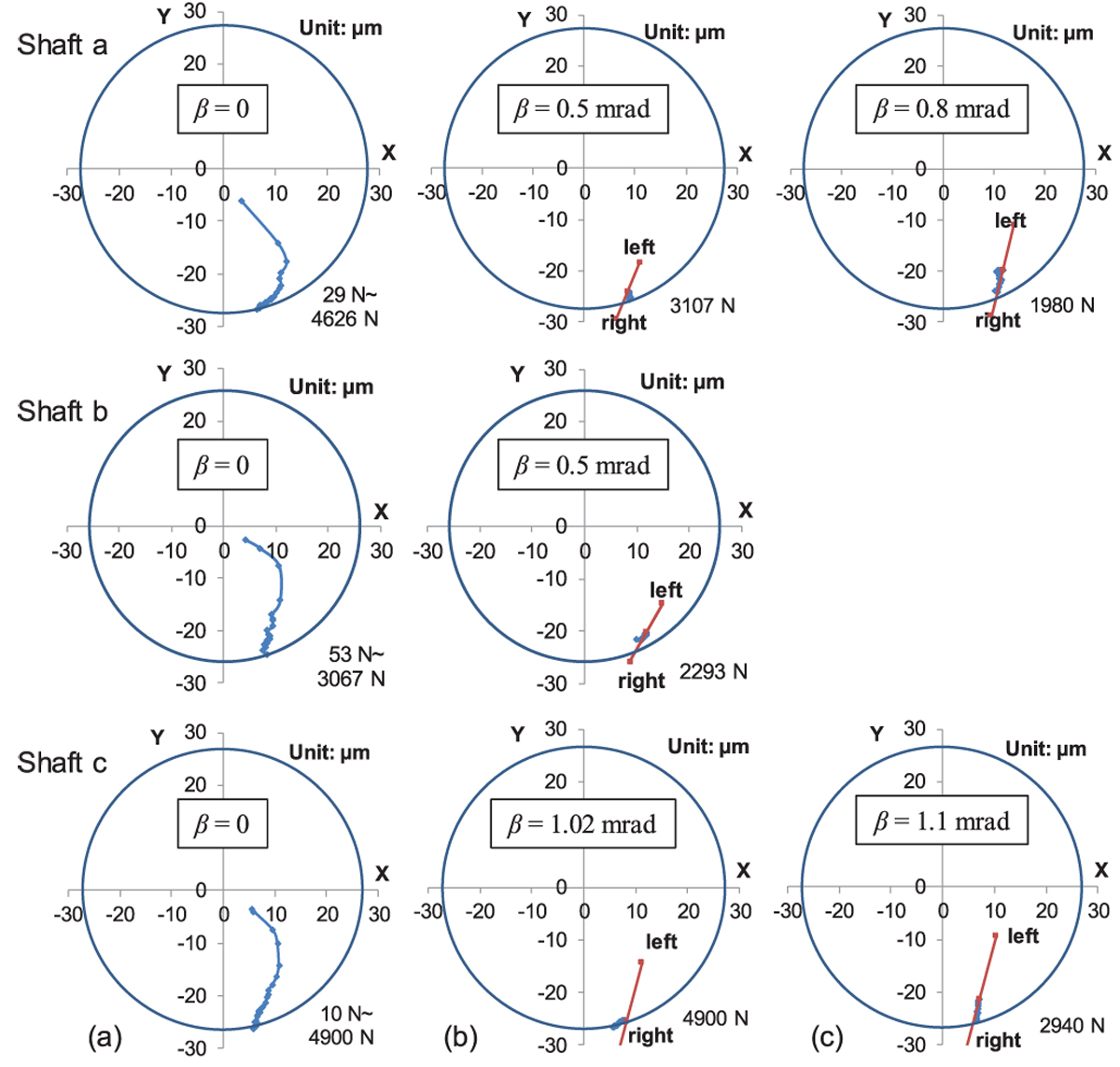

Bearing A & different shafts: change of journal center position as (a) load increases and (b, c) misalignment angle increases. Blue line: locus of journal center on the mid-plane of bearing. Red line: projection of shaft axis on the mid-plane of bearing for seizure load under misaligned conditions.
