Fig. 3


Download original image

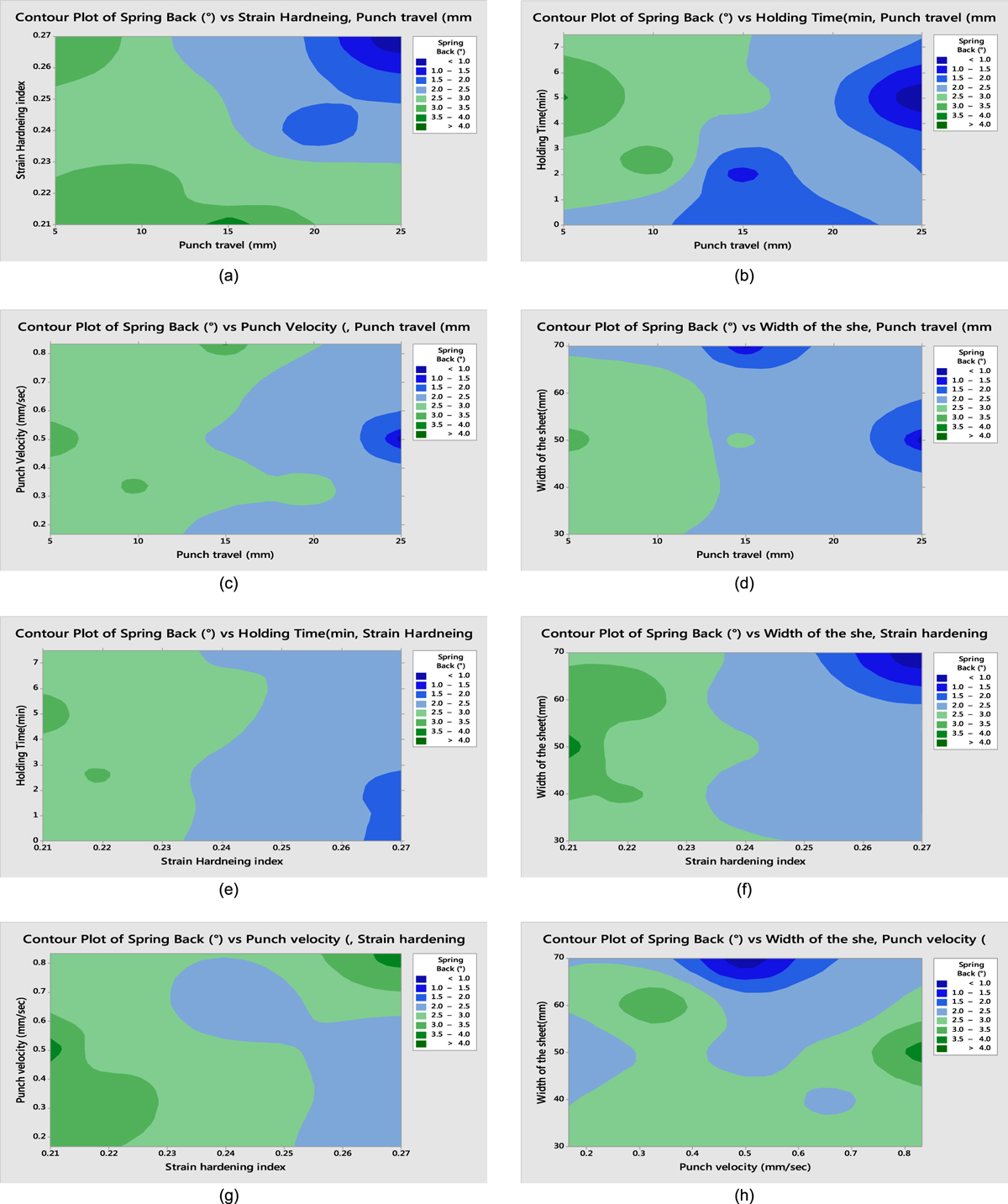

(a) Contour plot: Punch travel vs. Strain hardening index, (b) Contour plot: Punch travel vs. Holding time, (c) Contour plot: Punch travel vs. Punch velocity, (d) Contour plot: Punch travel vs. Width of the sheet, (e) Contour plot: Strain hardening index vs. Holding time, (f) Contour plot: Strain hardening index vs. Width of the sheet, (g) Contour plot: Strain hardening index vs. Punch velocity, (h) Contour plot: Punch velocity vs. width of the sheet.
