Fig. 3


Download original image

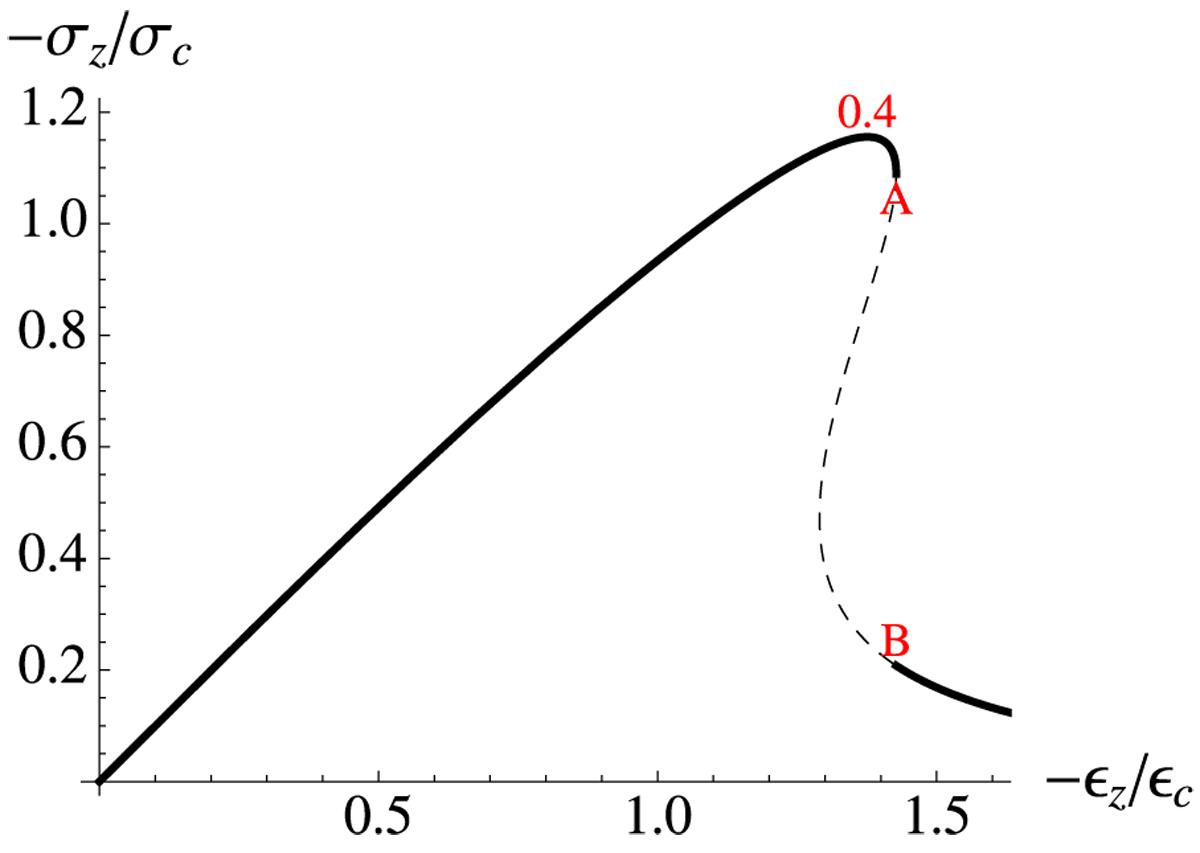

When R1/E0 is large enough, the graph of σ z vs. ϵ z contains a snap-back (here R1 = 0.4E0). Consequently, when the axial strain reaches the value corresponding to the limit point A, the response jumps from A to B.
