Fig. 4


Download original image

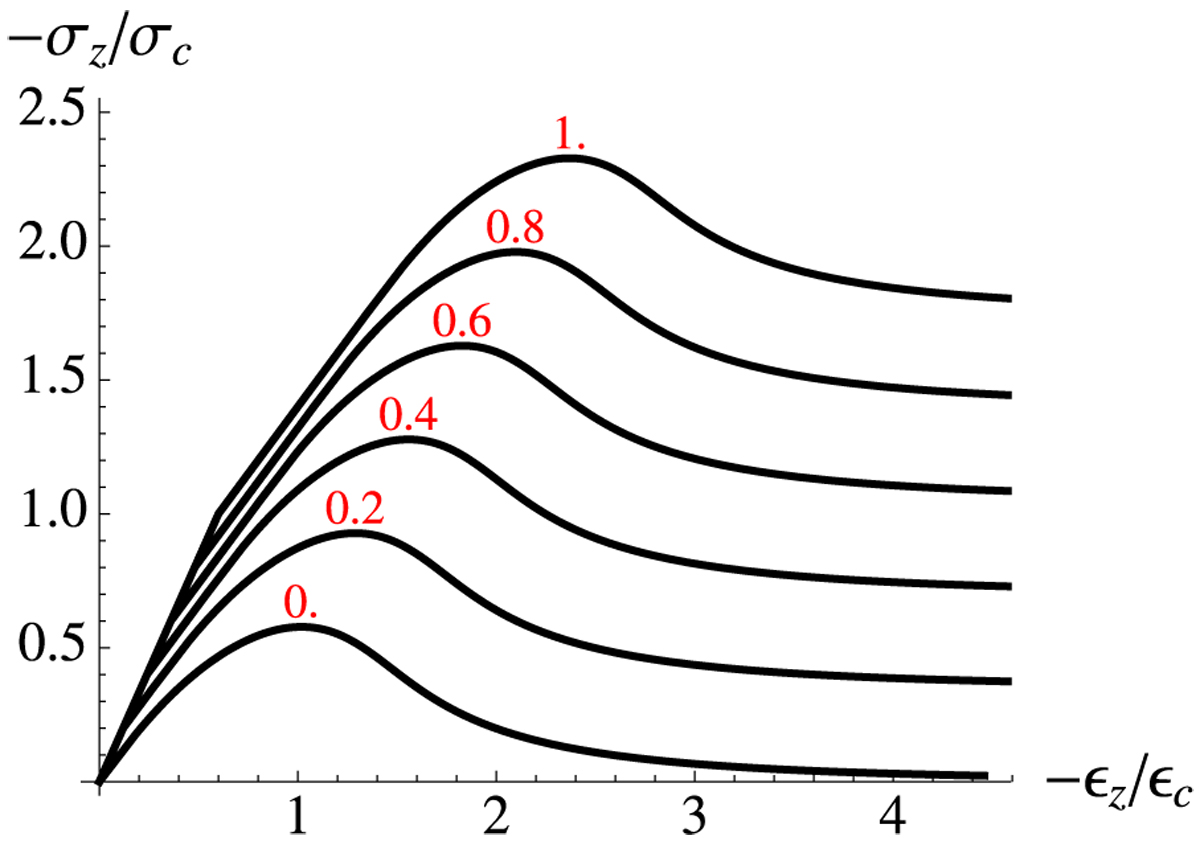

Graph of the axial stress vs. the axial strain for different values (in red on the graphs) of the confining pressure (in fact of the ratio p 0/σ c ) when R1 = 0.1E0. The first part (the linear part) of the graphs correspond to the hydrostatic and elastic stages.
