Fig. 19


Download original image

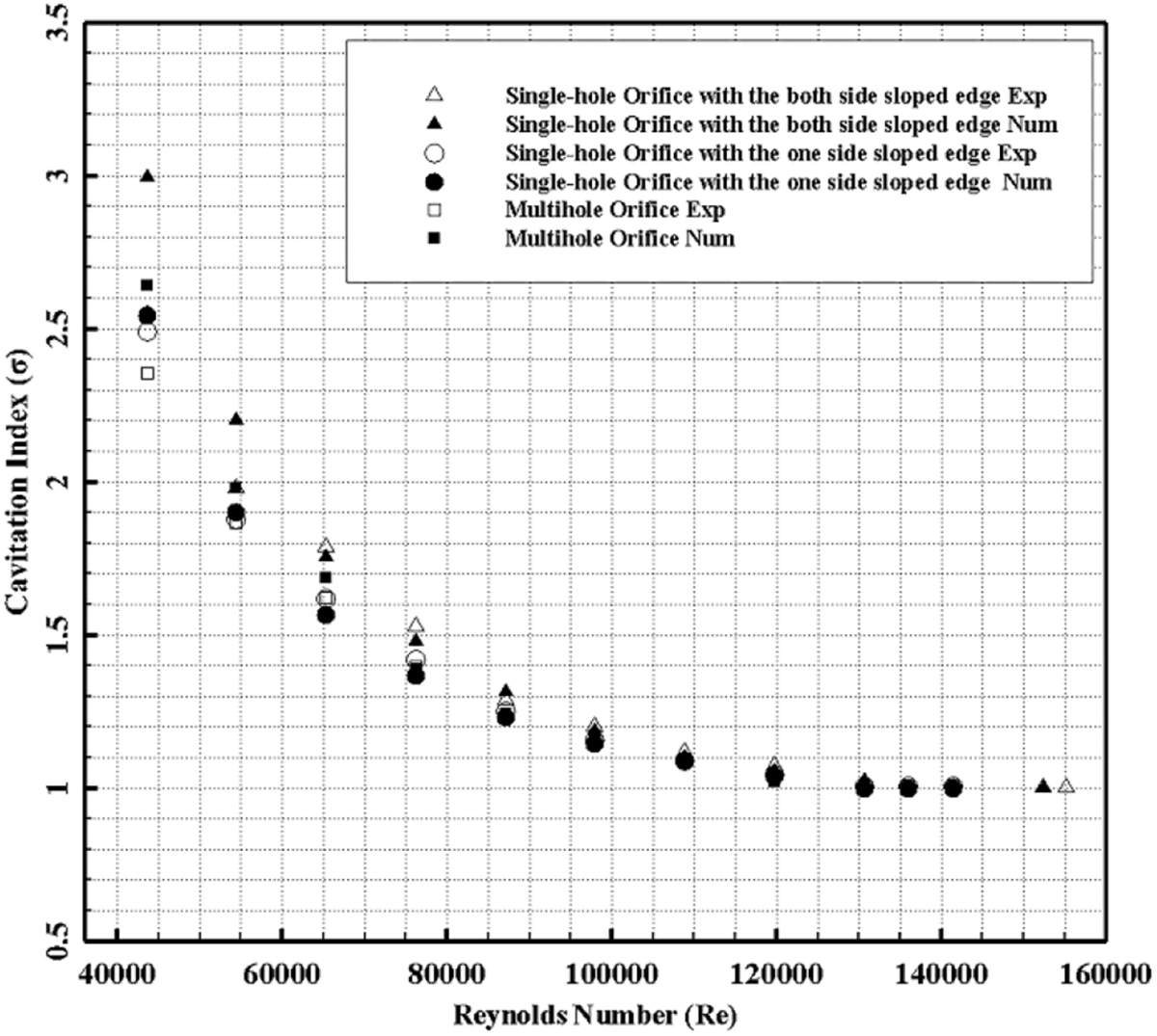

Comparison of the resulted cavitation index trends as a function of the Re in the numerical and experimental analysis for orifices with the same EDR of 0.4 including: 1- a single­-hole orifice with a two-sided sloped edge, 2- a single-hole orifice with a one-sided sloped edge, and 3- a multi-hole orifice.
