Fig. 3
Download original image

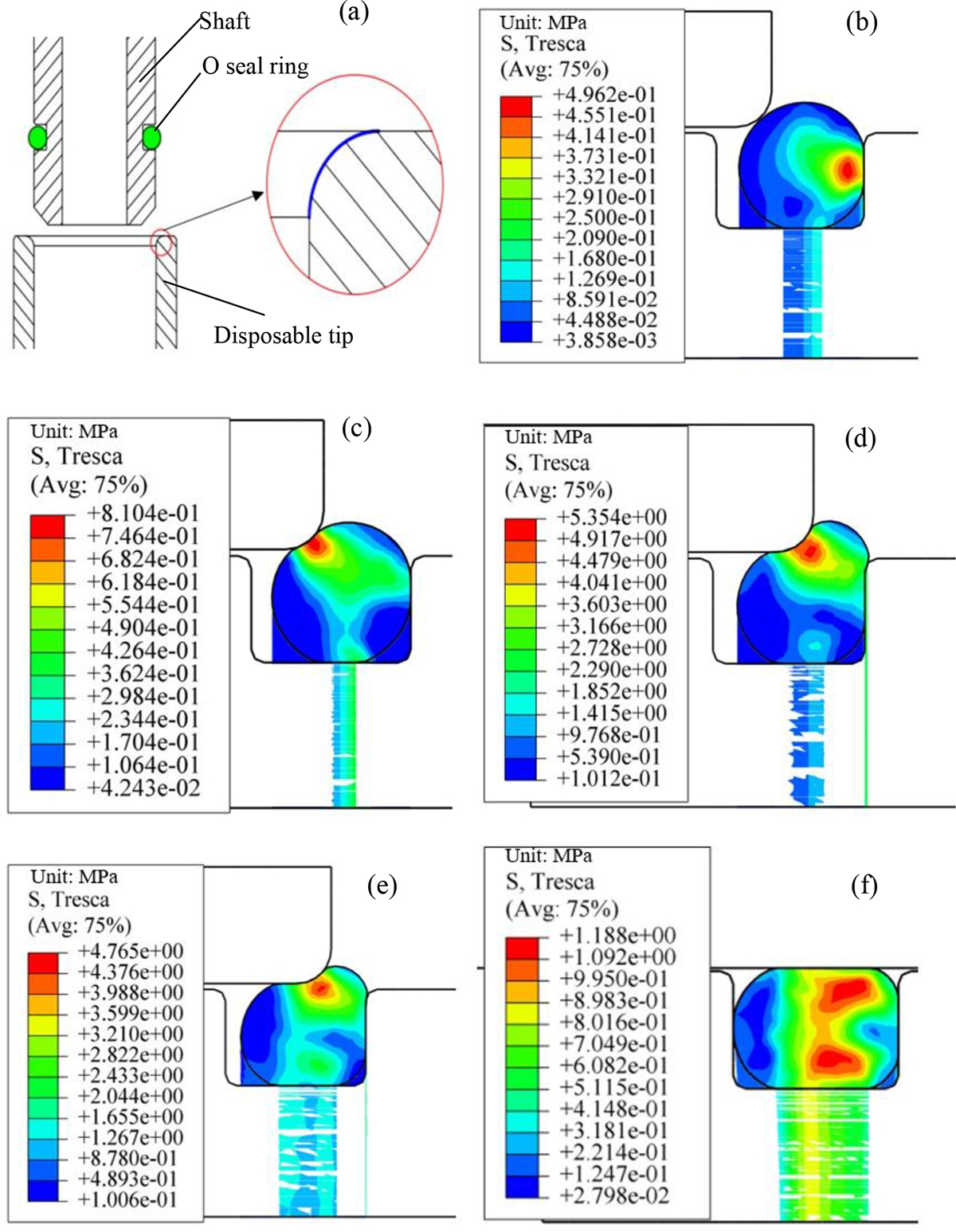

The whole assembly process of insertion of a seal ring into the disposable tip. (a) Assembly structure drawing. (b) The seal ring is in contact with a side of the seal groove. (c) The seal ring is in initial contact with the tip fillet R. (d) The seal ring is in complete contact with the tip fillet R. (e) The seal ring starts sliding into the inner cavity of the tip. (f) The seal ring has completely slid into the inner cavity of the tip till installation finish.
