Fig. 5


Download original image

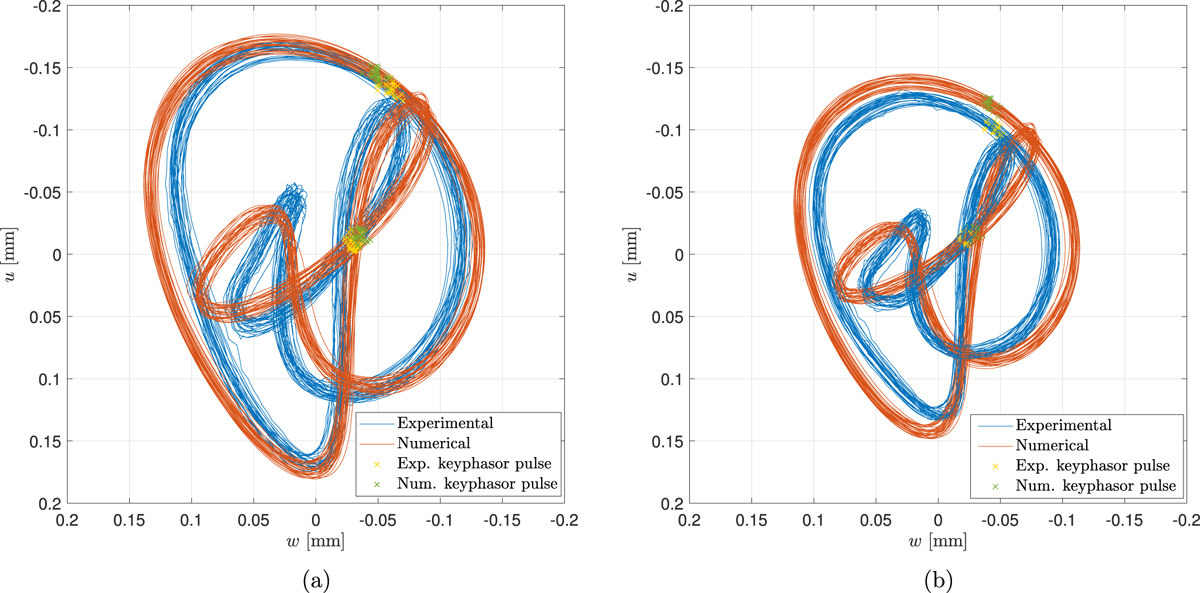

Experimental-numerical comparison of shaft orbits in response to mass unbalance and two harmonic translations along X0 and Z0 within a time interval of 2 s (≈ 57 full shaft rotations): (a) Node 15 and (b) Node 19.
