Fig. 12


Download original image

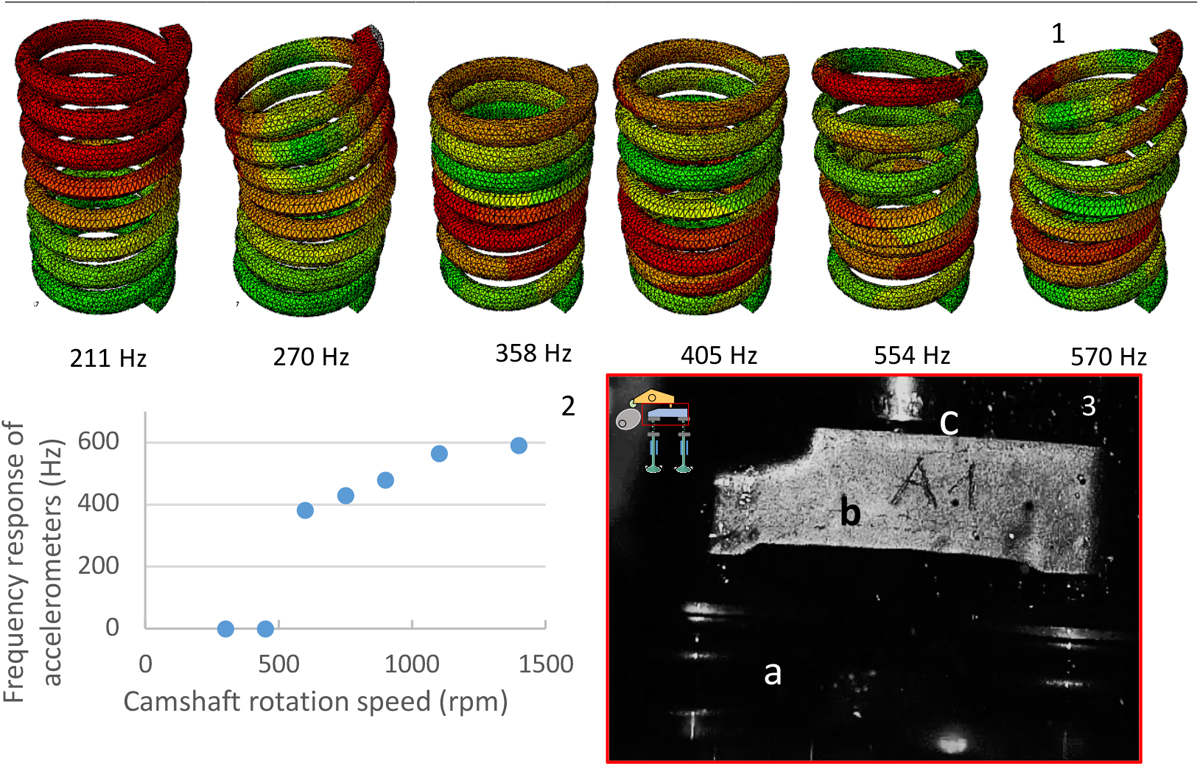

Characterization of the spring response, (1) natural frequency of resonance of the spring with the mass of the valve applied to the top of the spring, (2) fundamental frequencies from the accelerometer attached to the valves, (3) visualization of the valve actuation with the high-speed camera, a: spring, b: bridge, c: rocker arm.
