Fig. 4

Download original image

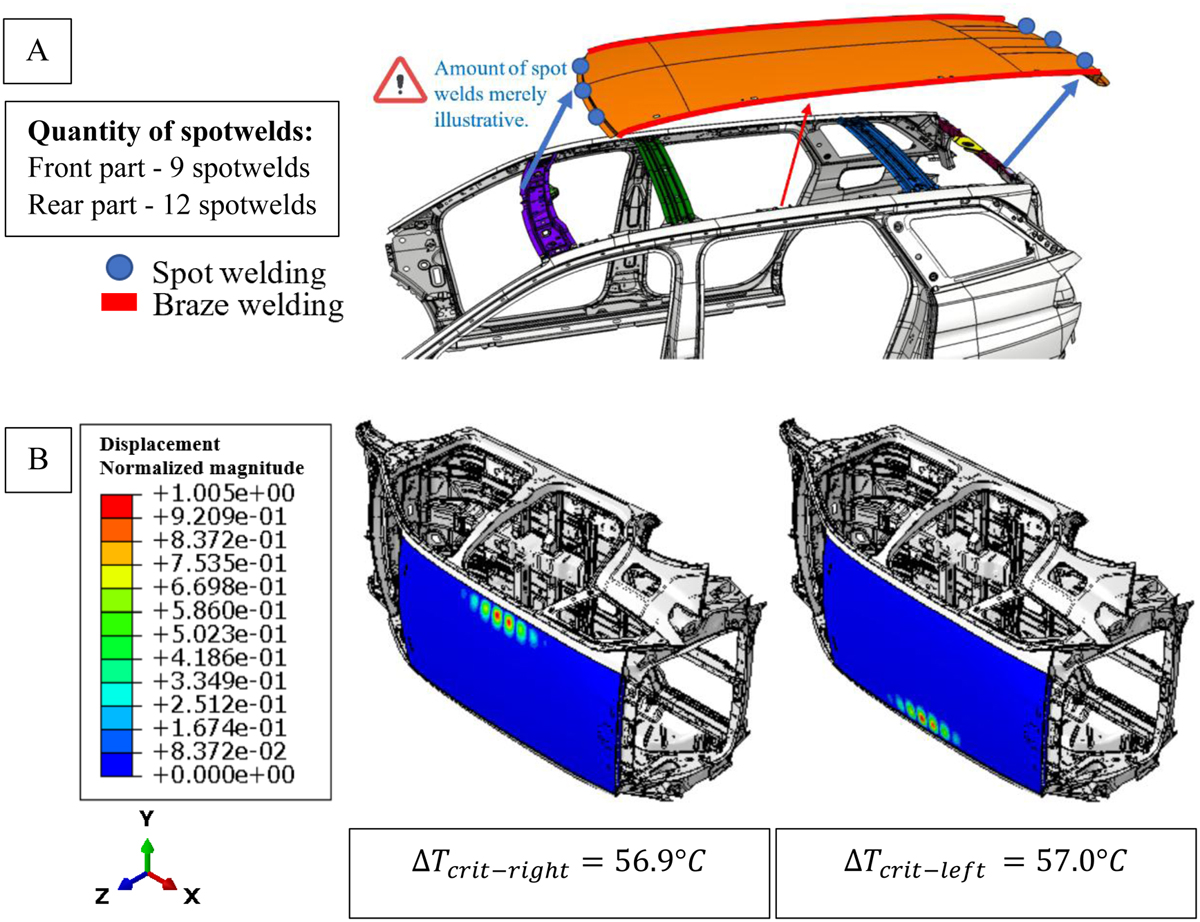

(A) Boundary conditions related to the assembly of the car roof with the body-in-white. (B) Result of the thermal buckling analysis through Finite Element simulation. ΔTcrit−right and ΔTcrit−left represent, respectively, the temperature variation required to reach the first buckling mode on the right and left sides of the car roof.
