Fig. 2


Download original image

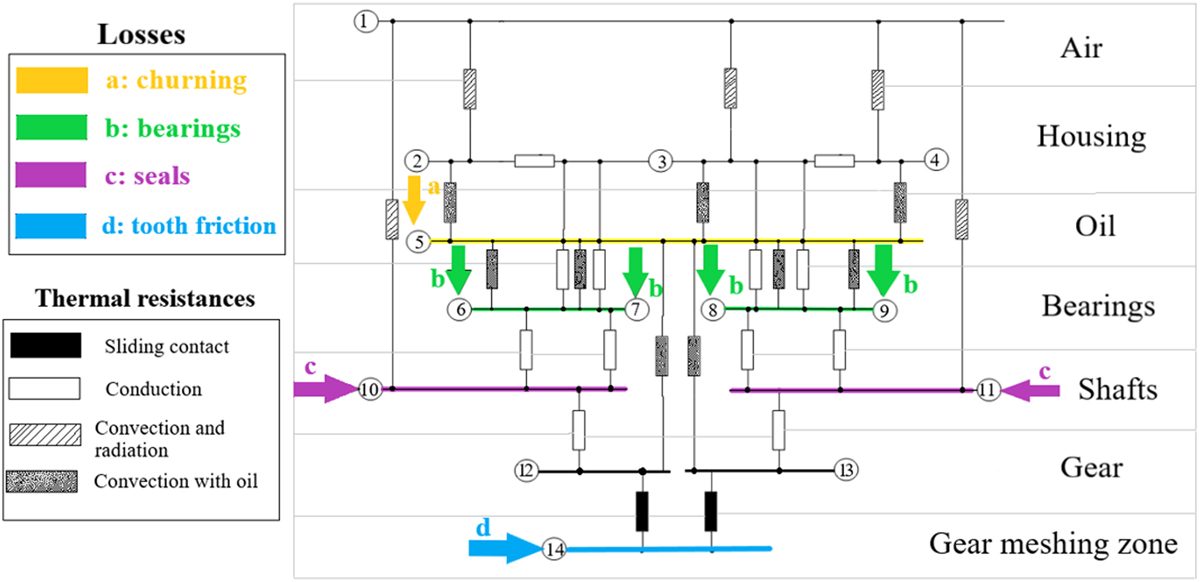

Thermal network for the studied single stage gear unit [17]. Numbering of isothermal elements: (1) = ambient air; (2) = upper part of the casing; (3) = lateral part of the casing; (4) = lower part of the casing;(5) = oil sump; (6) and (7) = bearings on pinion's shaft; (8) and (9) = bearings on wheel's shaft; (10) = pinion's shaft; (11) = wheel's shaft; (12) = pinion; (13) = wheel; (14) = meshing zone of gear teeth.
