Fig. 8
Download original image

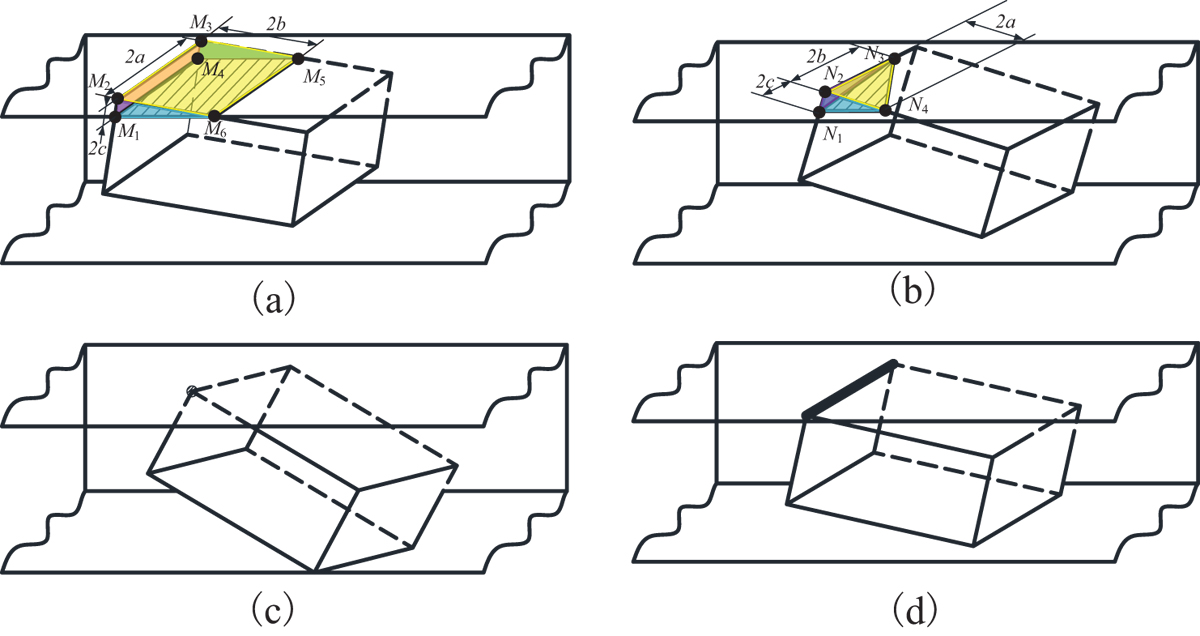

Classification of the contact area between the slider and the guide rail. (a) The situation when the contact area are rectangular and triangular. (b) The situation when the contact area are triangular. (c) The situation when the contact is a point contact. (d) The situation when the contact is line contact.
