Fig. 4
Download original image

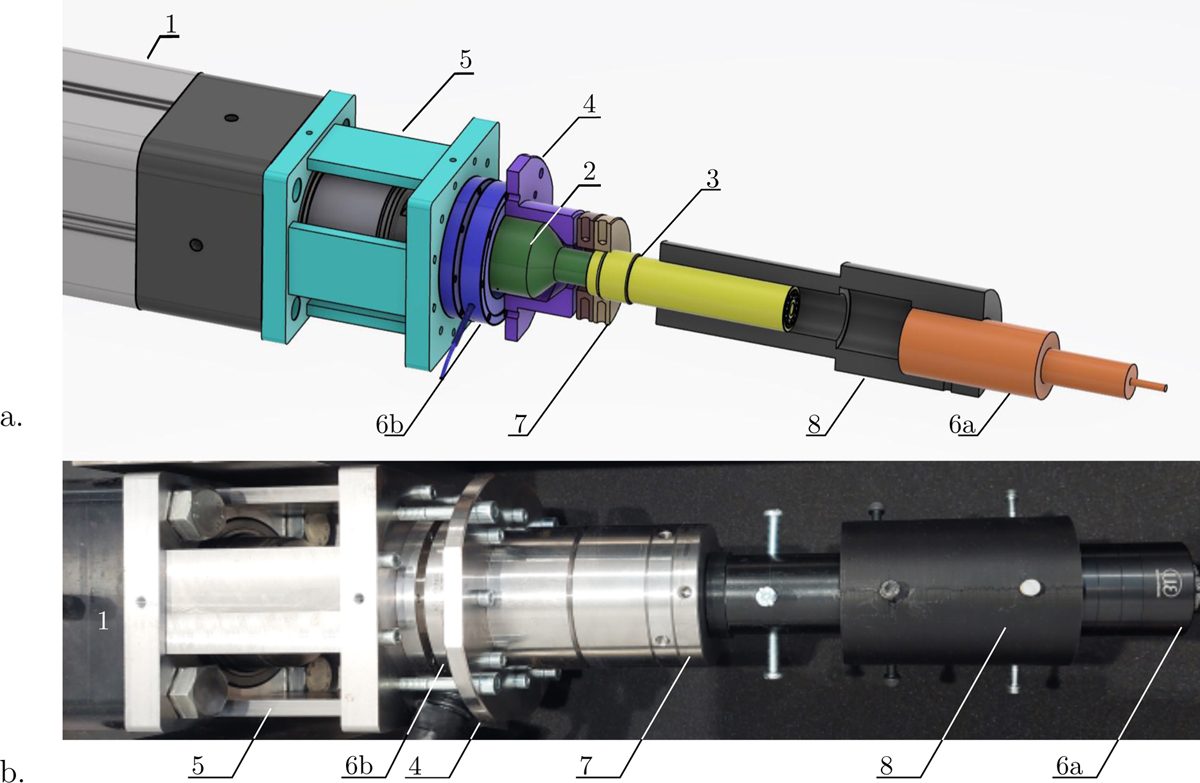

a. Exploded view of the PRSM traction test bench. 1: Electric jack. 2: Adaptor between jack piston and PRSM screw. 3: PRSM. 4: Adaptor between PRMS nut and Force sensor. 5: rigid frame between force sensor and Jack body. 6a: Optical displacement sensor. 6b: Force sensor. 7: Tightening and counter‐rotating elements for prestress. 8: Optical sensor aligner. b. Top view of the test bench.
