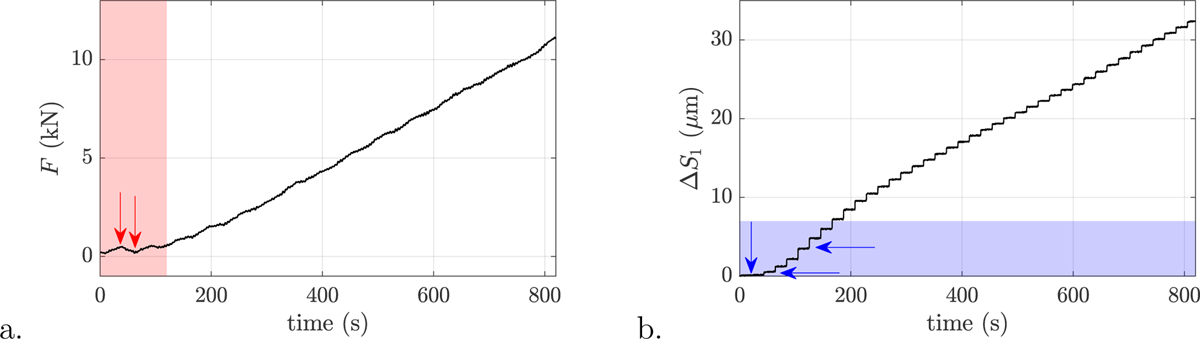

Fig. 9
Download original image
Synchronous measurement of force and displacement of the PRSM. a. 3s‐averaged load sensor signal (moving mean). Red patch indicates zone of almost nil force with fluctuations (red arrows). b. Raw displacement signal. Vertical blue arrow: clearance closing before engagement. Horizontal arrows: step size variation indicating stick‐slip behaviours or clearances in the mechanism.
