Fig. 4

Fig. 4 Refer to the following caption and surrounding text.

Download original image

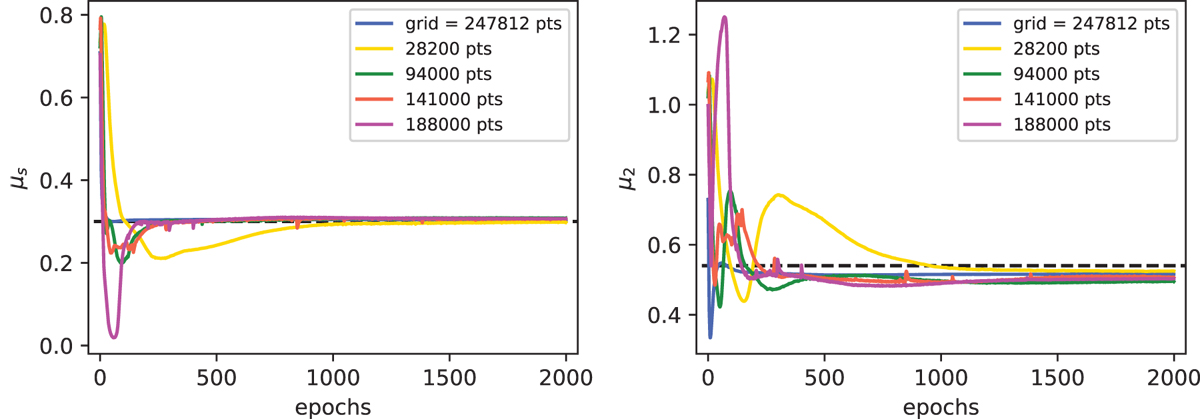

Evolution of the identified rheological parameters μs (left) and μ2 (right) as a function of the training epochs for different numbers of observation points Xdata. Observation points are either taken from the full uniform computational grid (in blue) or sampled according to a probability distribution weighted by the maximum absolute value of D2. The dashed lines indicate the reference values of the identified parameters.
