Fig. 2
Download original image

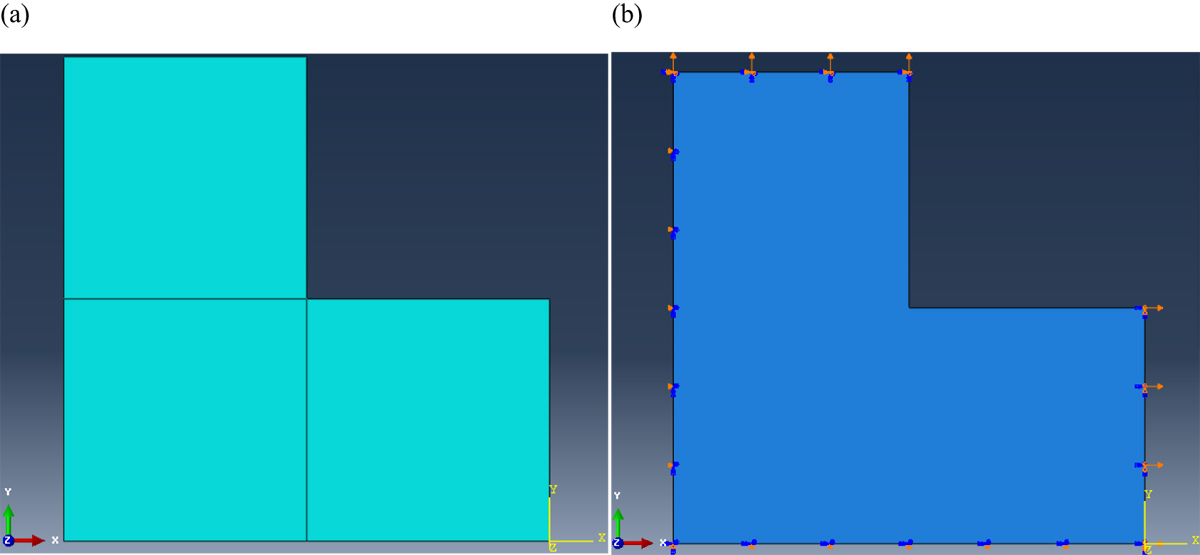

Mesh and load of the biaxial tension FE model. (a) Three elements of the 1/4 biaxial tension FE model. A global coordinate system and a local coordinate system, (b) Boundary and loading conditions of the 1/4 biaxial tension FE model. A global coordinate system and a local coordinate system.
