Fig. 5
Download original image

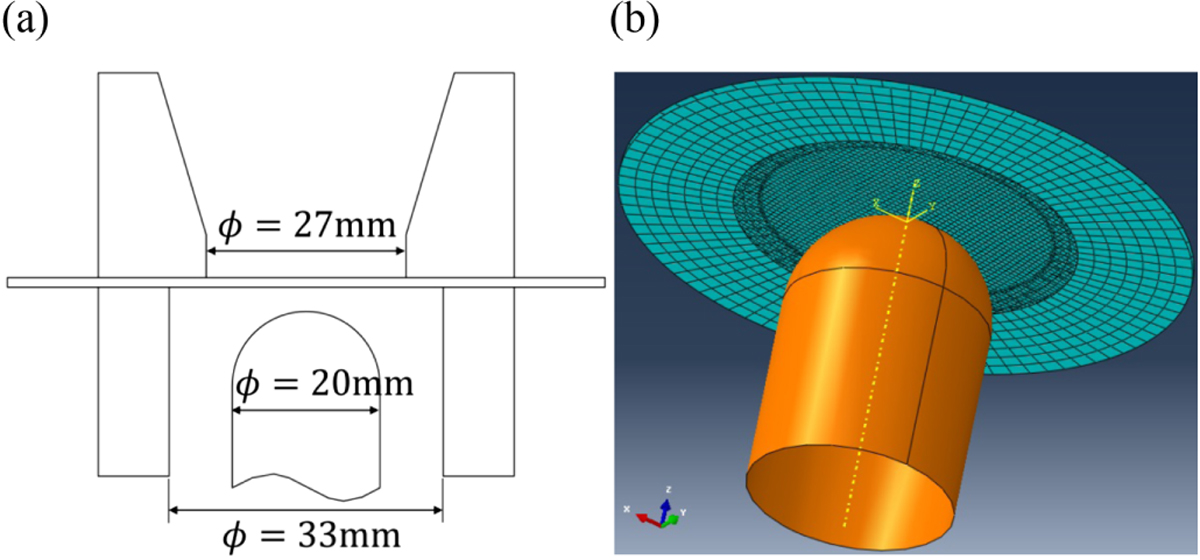

The geometry and FE model of the Erichsen test. (a) Basic dimensions of the Erichsen test tools (two blank holders and a punch), (b) FE model FE model of the Erichsen test. A global coordinate system, a local coordinate system and axial symmetry line of the punch.
