Fig. 3
Download original image

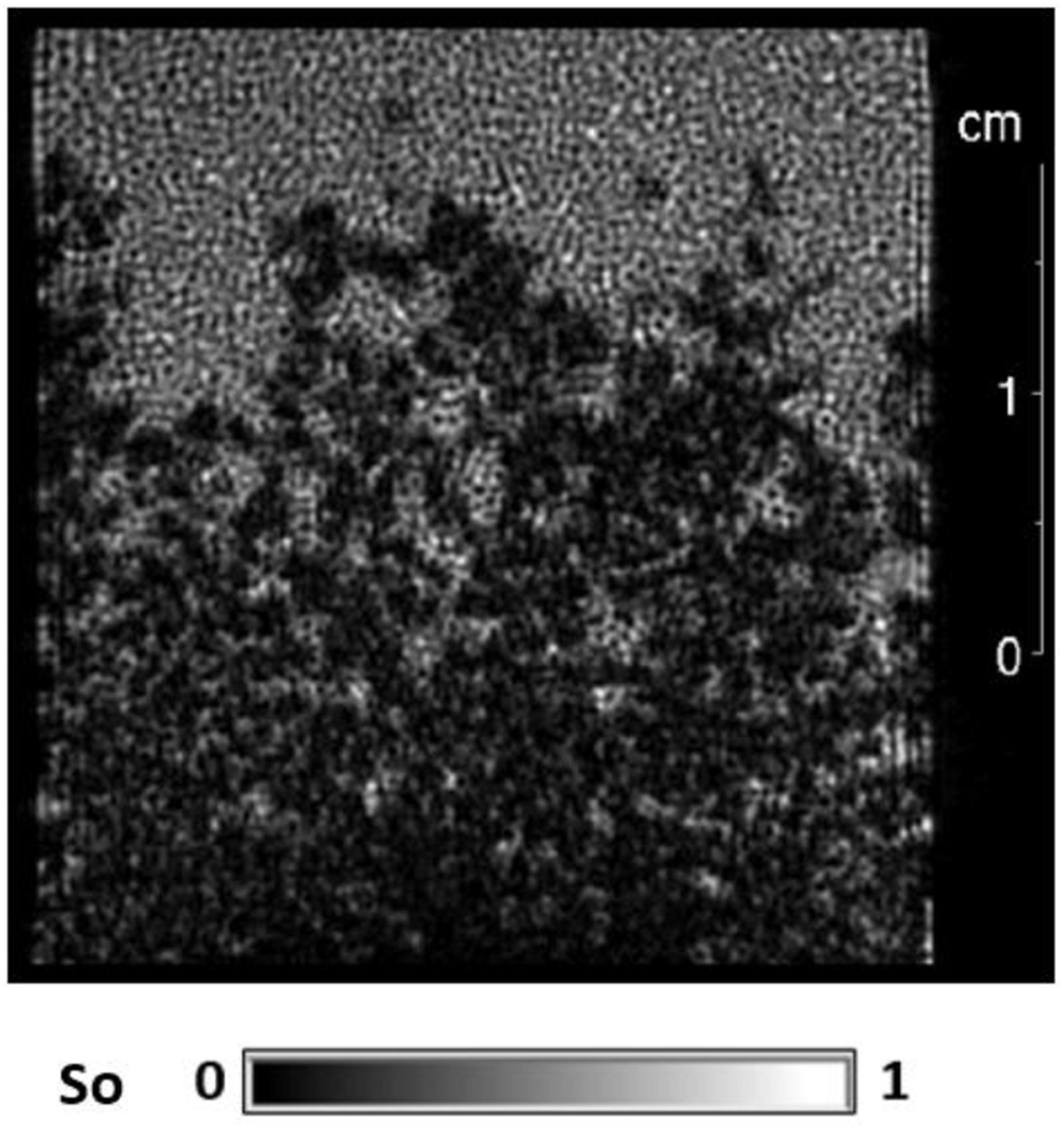

MRI vertical slice of a stack of polystyrene beads contained in a PVC tube and initially saturated with oil. The aqueous solution of MnCl2 is injected from the bottom with a flow rate of 0.12 mL/min. The image is obtained after 3h45 of water injection. Water saturated regions appear in black and those saturated with oil in white.
