Fig. 7


Download original image

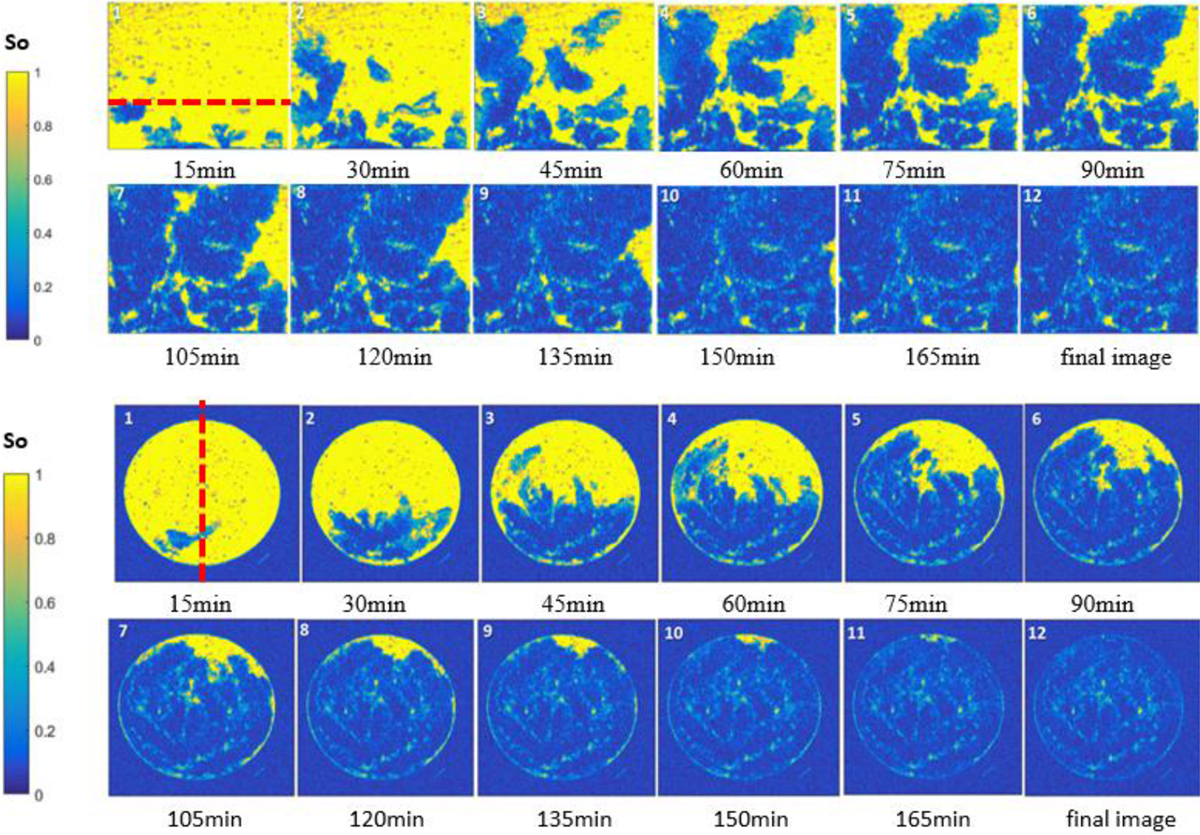

Consecutive MRI images of the water–oil displacement in the model of packed sand column with the injection flow rate of 0.12 mL/min. The oil is yellow and the water is blue. The time interval between each image equals 15 minutes from the first water appearance in FOV. The dotted line on the first vertical section indicates the position of the horizontal sections (and vice-versa for the horizontal section below).
