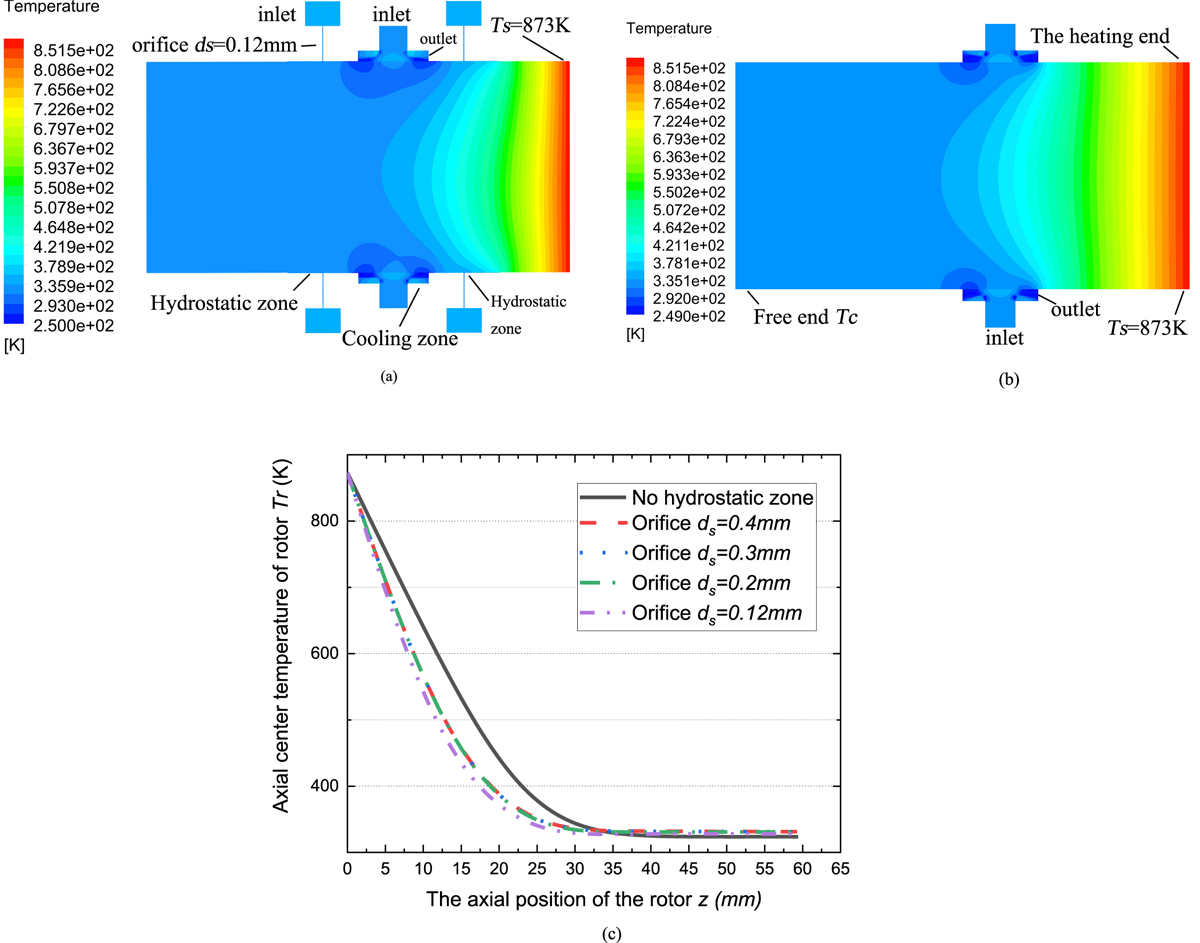

Temperature distribution cloud map and gradient comparison chart, din = 4 mm, Hg = 1.5 mm, TCO2 = 350 K, PCO2 = 7 MPa.(a) With hydrostatic zone. (b) No hydrostatic zone. (c) Temperature gradient comparison.
