Fig. 1


Download original image

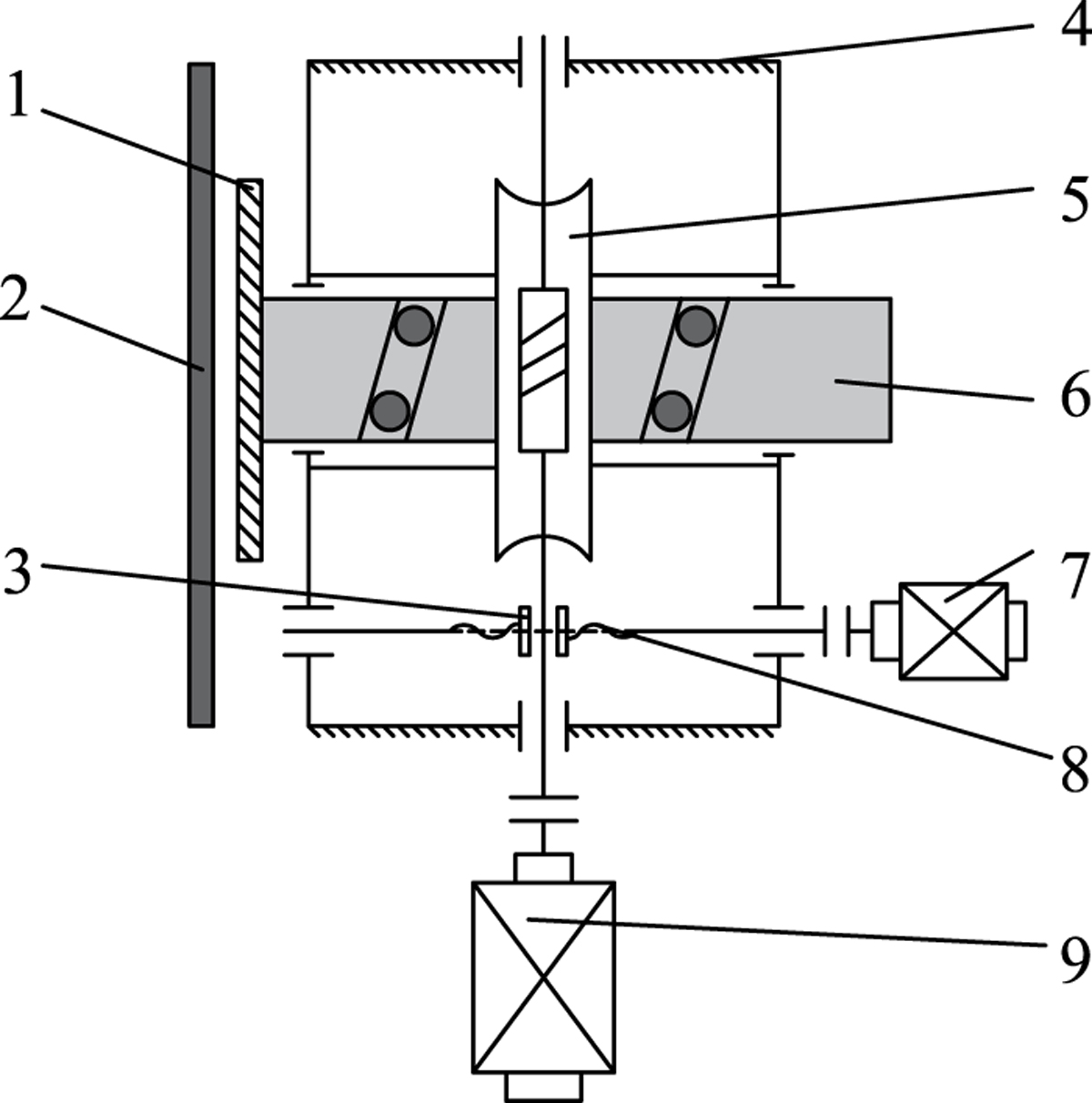

Structure diagram of electromechanical brake. 1. Brake disc; 2. Brake tread; 3. Clamp block; 4. Box; 5. Worm gear; 6. Ball screw pair; 7. Stepper motor; 8. Trapezoidal screw; 9. Torque motor.
