Fig. 8


Download original image

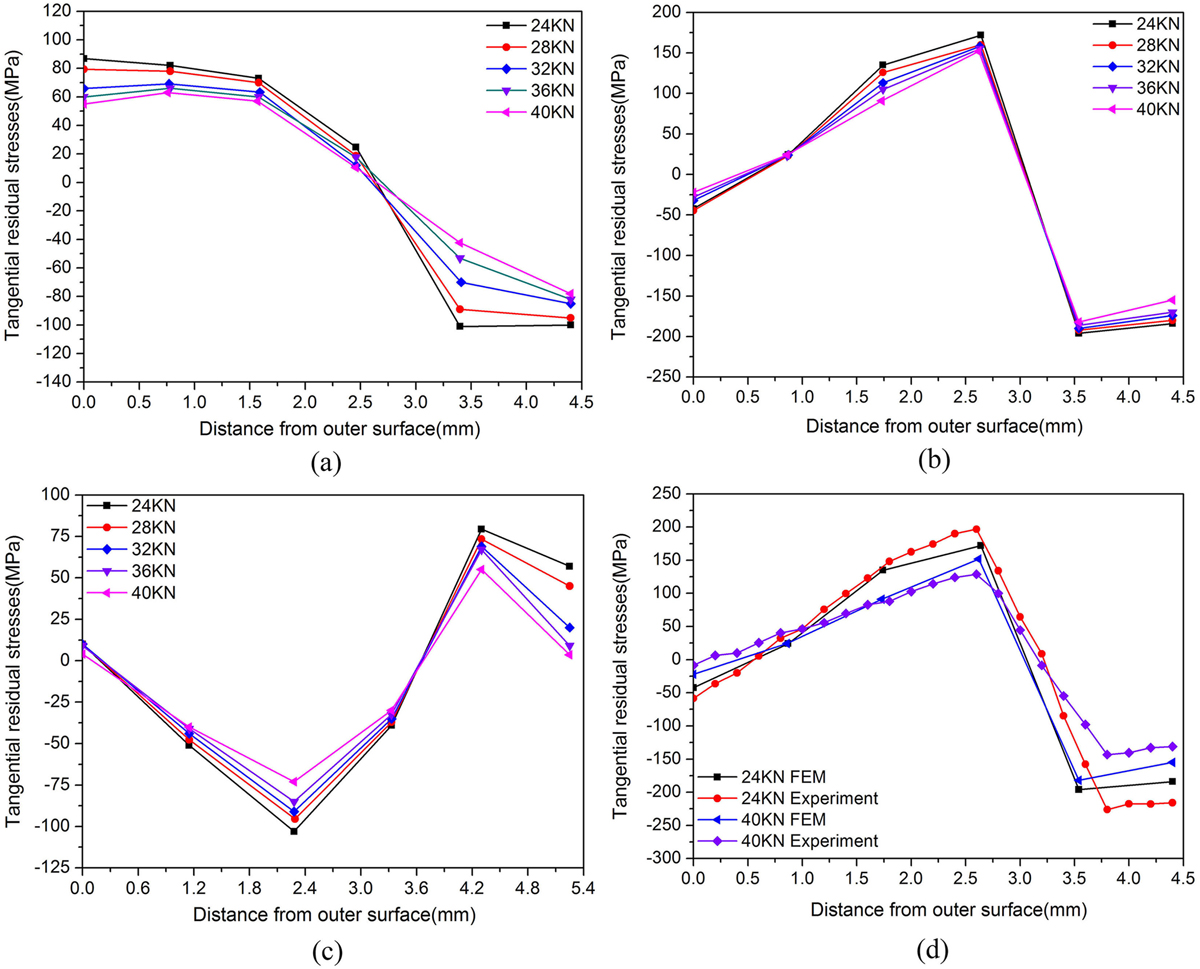

Tangential residual stress distribution in the (a) cup bottom, (b) cup wall and (c) die entrance radius of square cups under various blank holder forces, and (d) comparison of the residual stresses in the cup wall obtained from numerical simulations and experimental measurements.
