Fig. 4
Download original image

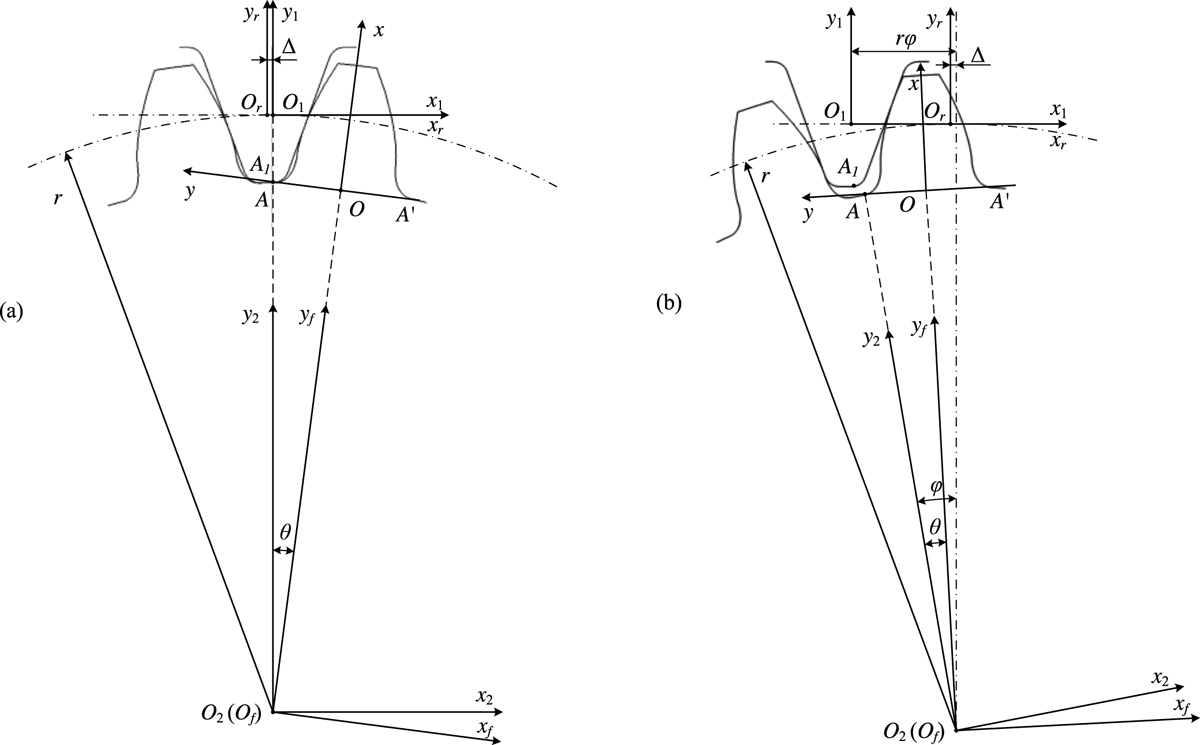

Derivation of coordinate transformation by rotation: (a) initial position of coordinate systems Sf, S1, S2, and S, (b) position of coordinate systems Sf, S1, S2, and S when gear rotates ϕ.
