Fig. 1
Download original image

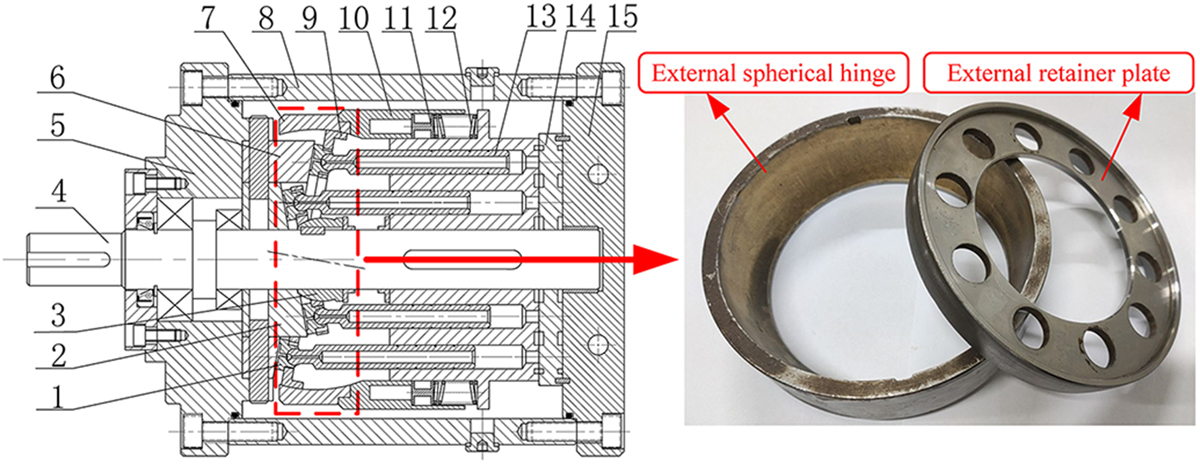

Structure of the balanced double-row axial piston pump. 1. Slipper; 2. Internal swash plate; 3. Internal spherical hinge; 4. Pump shaft; 5. Front end cover; 6. External swash plate; 7. External spherical hinge; 8. Shell; 9. External retainer plate; 10. Juncture. 11. Spring seat; 12. Compression spring; 13. Plunger; 14. Valve plate; 15. Rear end cover.
