Fig. 16
Download original image

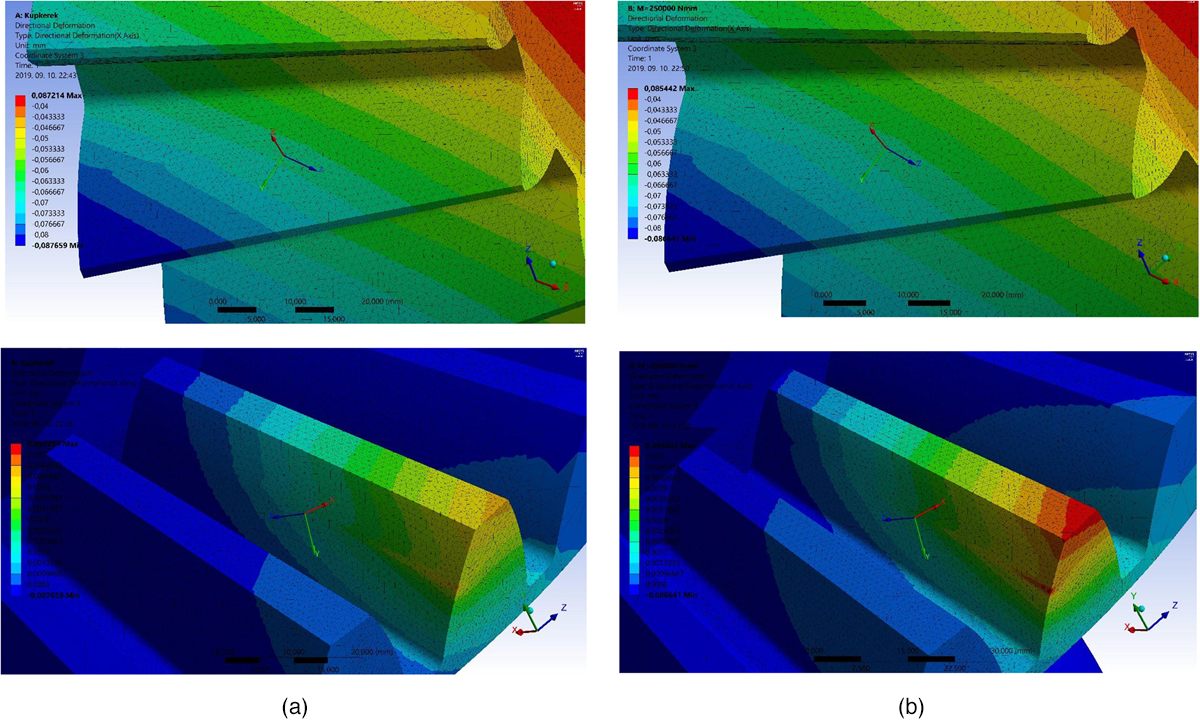

Normal deformation values. (a) M = 200 Nm: driver gear,
−0.0654 mm (top), driven gear,
0.00166 mm (bottom). (b) M = 250 Nm: driver gear,
−0.0644 mm, driven gear,
0.00207 mm. (c) M = 300 Nm: driver gear,
−0.0636 mm, driven gear,
0.00247 mm. (d) M = 350 Nm: driver gear,
−0.0629 mm, driven gear,
0.00286 mm. (e) M = 400 Nm: driver gear,
−0.0621 mm, driven gear,
0.00325 mm.
