Fig. 6


Download original image

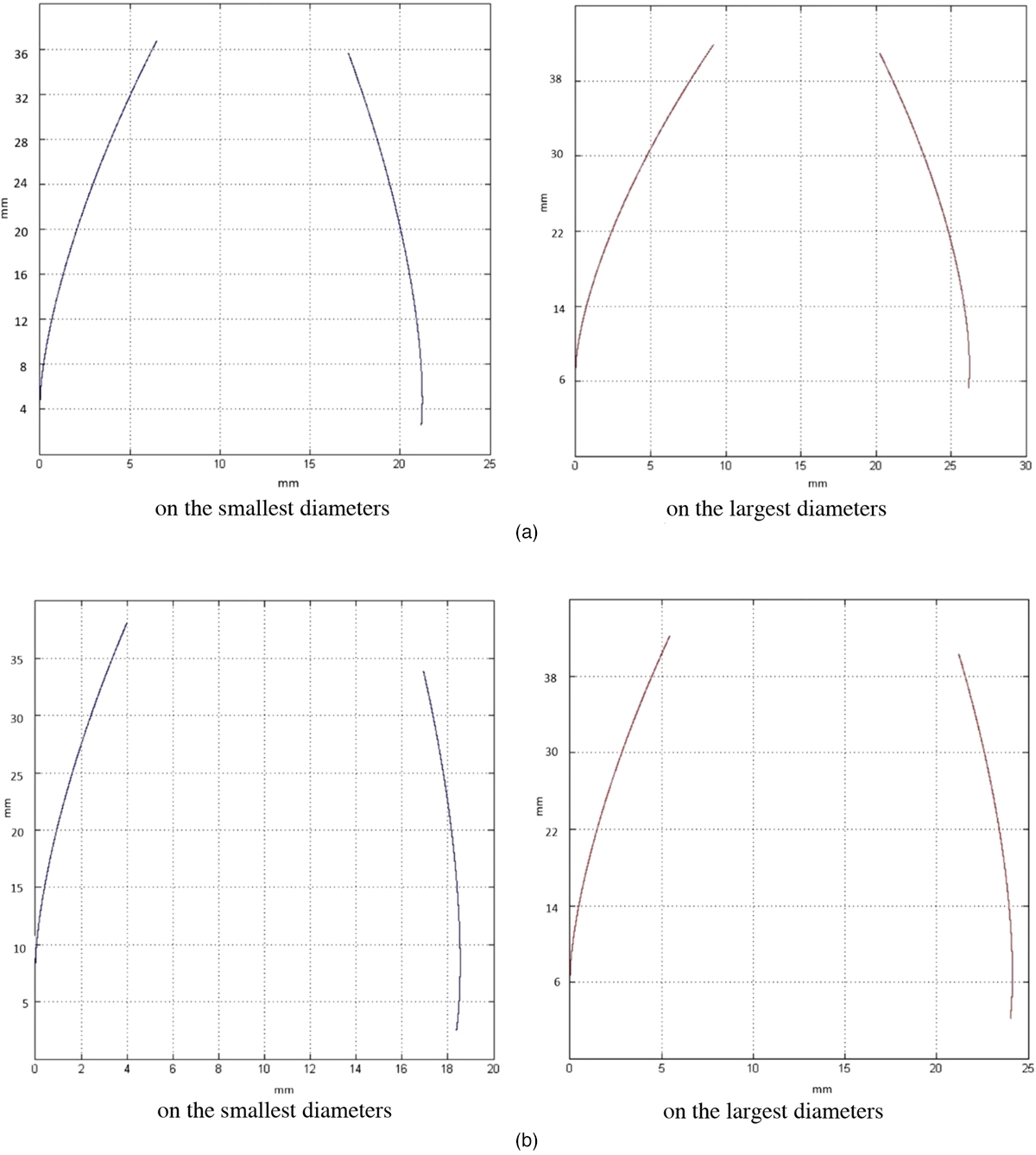

Profile curves of the designed bevel gear pair (m = 15 mm, z1 = 20, z2 = 30, Σ = 90°). (a) Profile curves of the driver gear. (b) Profile curves of the driven gear.
