Fig. 10

Download original image

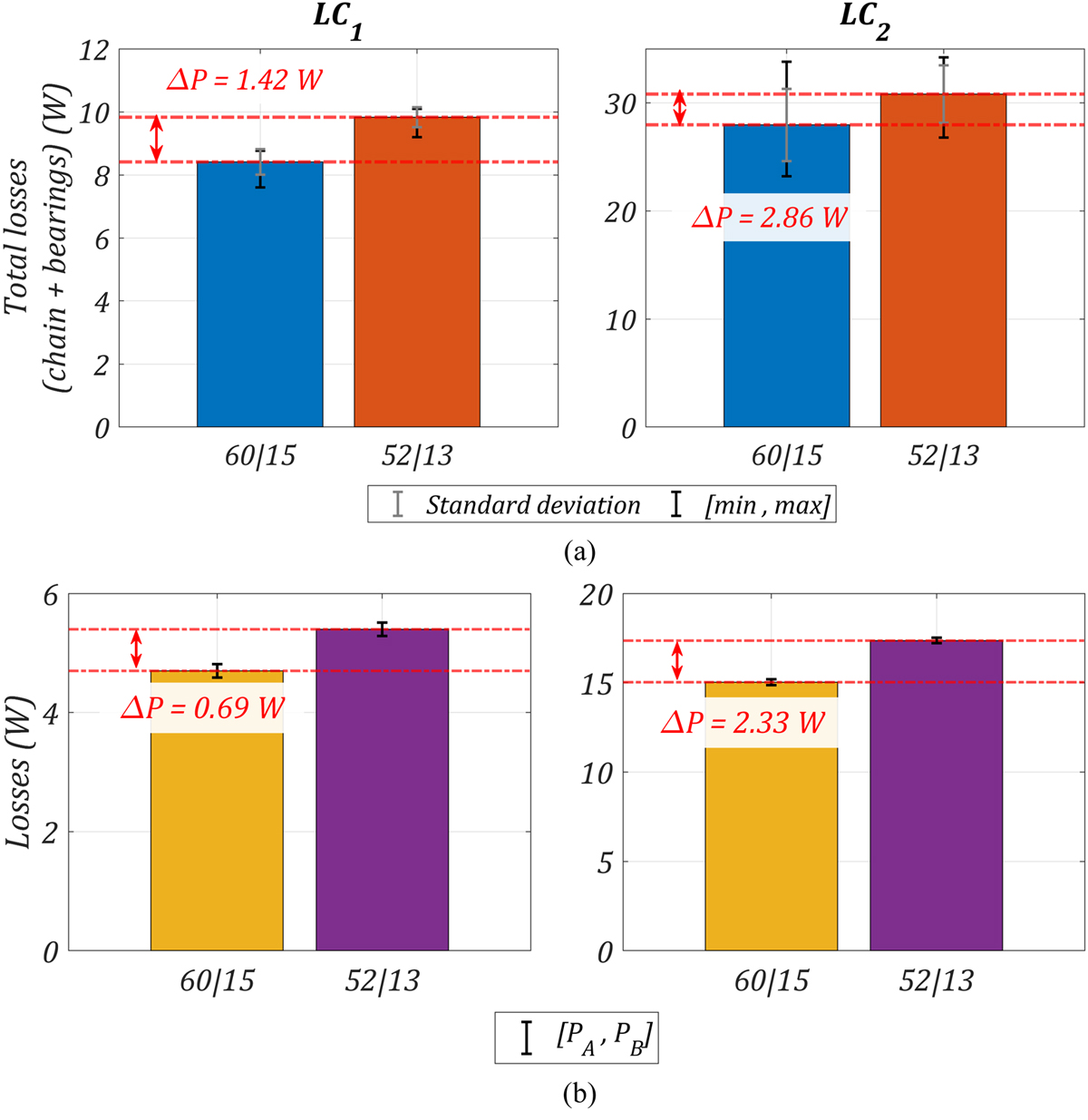

Total power losses measured by (a) the test rig and (b) the CDEM for 60|15 and 52|13 drives for both Loading Conditions (LC1 and LC2).
